Download This Chapter

Organize Codes

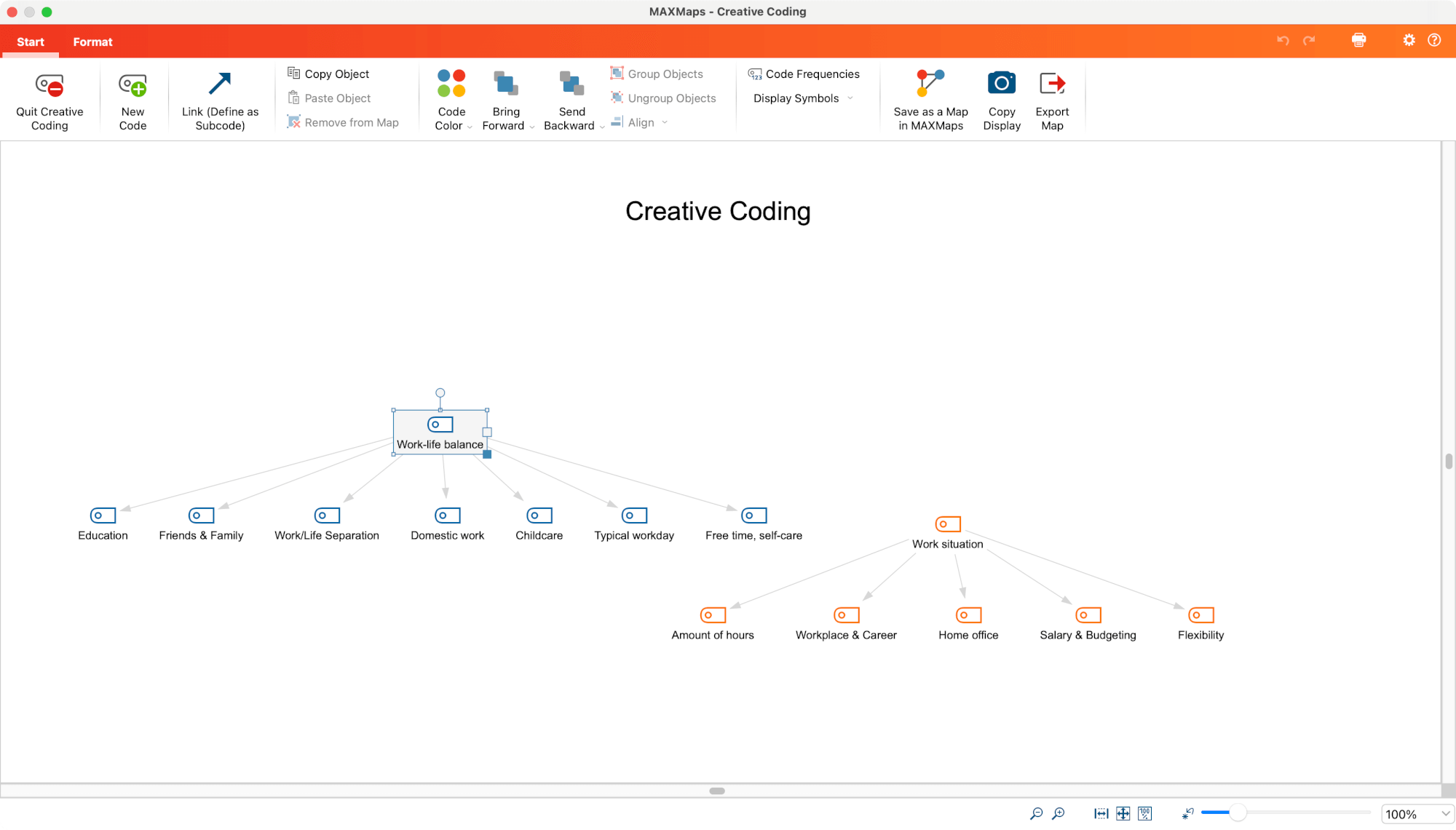

Once you have clicked on Start Organizing Codes on the Start menu tab, you can start structuring and organization your codes. The display will change at this point; the "Code System" on the left will close and a color panel appears that displays all of the colors currently in use in the project together with the standard colors of MAXQDA.

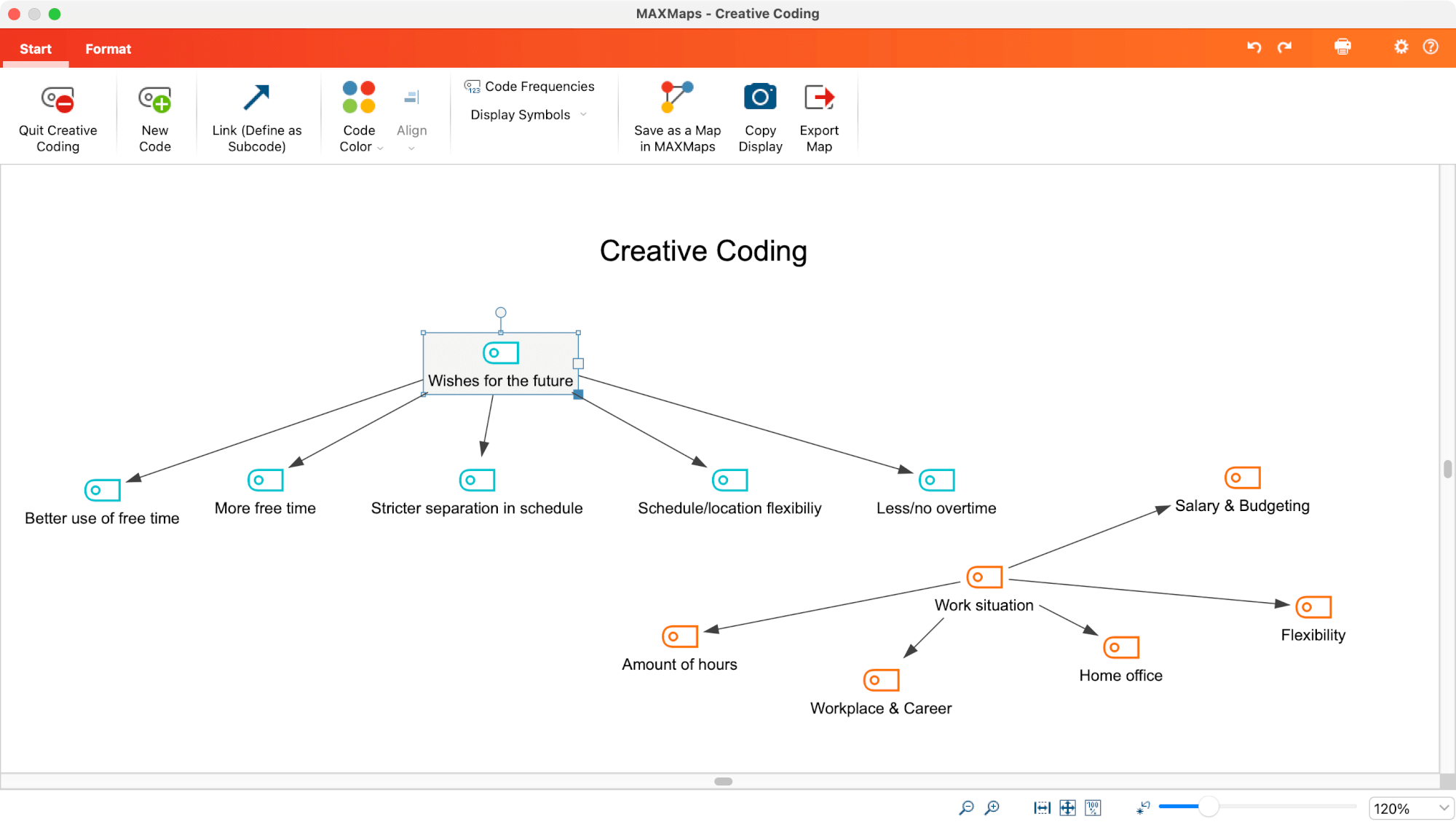

Organizing codes on the Creative Coding workspace

All codes can be freely arranged on the workspace with the mouse. You can move multiple codes at once by drawing a border around them with the mouse and then positioning them as desired.

The following options are available in Creative Coding Mode:

  • Creating relationships between codes
  • Creating new codes
  • Merging codes
  • Modifying code colors
  • Undoing changes
  • Displaying coded segments and code frequency of a code
Please note: All changes made in Creative Coding Mode are not directly added to the "Code System". These are added when Creative Coding is closed.

Creating connections between codes

As displayed in the image above, connections between codes are shown with an arrow: When an arrow is pointing at a code, it means that this code is a subcode of the other. In the above image, for example, the code "Sports" is a subcode of the code "Interests".

To make Code A a subcode of Code B, proceed as follows:

  1. Go into Link Mode by clicking the Link (Define as Subcode) symbol on the Start menu tab. Alternatively, use the shortcut Ctrl+L (Windows) and ⌘+L (macOS) to activate/deactivate the Link Mode.
  2. Click on the desired top-level code and draw an arrow to the desired subcode.

To avoid the occurrence of circular references, existing assignments of the subcode to other codes are removed.

To delete an arrow, right-click on it and select Remove from Map.

Adding new codes

Users often wish to group multiple codes under an abstract concept. For this purpose, you can always create new codes by clicking the New code symbol on the Start menu tab. MAXQDA will subsequently insert the new code in the top left of the workspace.

You can rename the code by double-clicking on its label.

Merging codes

To merge two codes, proceed as follows:

  1. Drag a code with the mouse button pressed down onto another code until the info box "Merge codes" appears at the mouse cursor.
  2. When you release the mouse button, the following confirmation message will appear:

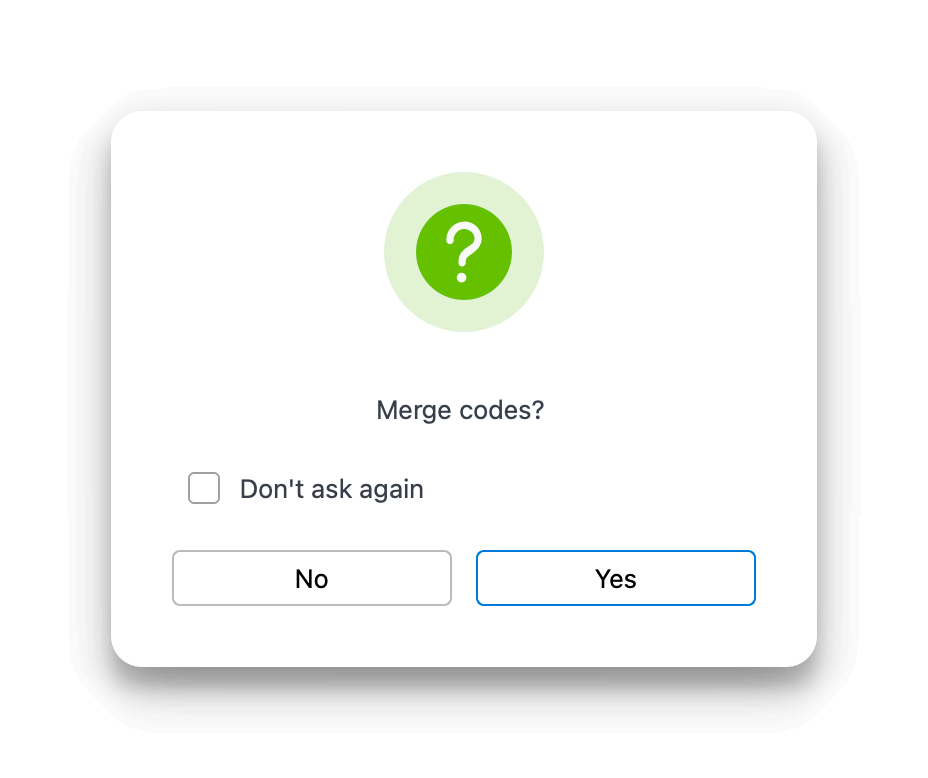

    Confirmation message for merging of codes
  3. After clicking on Yes, the shifted code disappears from the map and its code assignments are assigned to the target code.

If you have activated the display of the code frequencies, you can directly see that the number of coded segments under the target code has increased. Since some segments may already be coded with the target code, the frequency displayed may be less than the sum of the code frequencies of the merged codes. The merge is provisional until you quit Creative Coding, thereby updating the code system. Then the coded segments are assigned to the target code and the source code is deleted in the code system.

If you choose Don’t ask again, the inquiry for the merging of codes will no longer appear in the current Creative Coding session.

Dealing with memos when merging codes

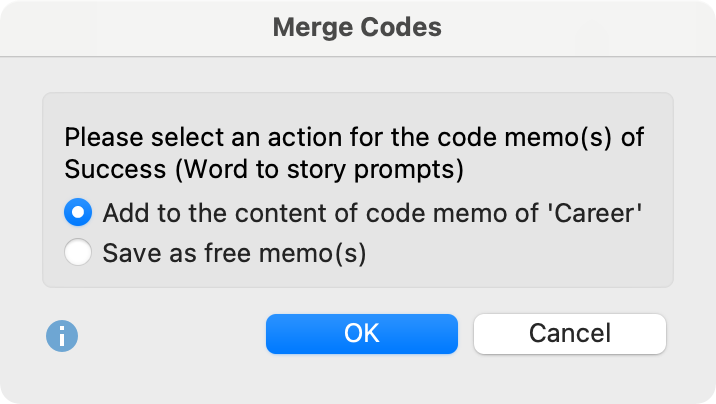

Of course, both codes may include a code memo. In this case MAXQDA will ask you how to deal with the memo content of the moved code:

Changing the color and appearance of codes

The color of codes can be modified as follows:

  1. First, make sure that the Link Mode is off. If necessary, click on the white surface once to turn off Link Mode.
  2. Click the code whose color you wish to change. To select multiple codes at once, draw a border around the codes with the mouse or click on each code while holding the Ctrl key (Windows) or ⌘ key (macOS).
  3. To assign a color, click on a displayed color in the color panel on the left or click on Choose new color… to select another one.

If you change the color of a parent code, the color of the subcodes will also be changed following confirmation.

As soon as you select one or more codes, the Format menu tab appears at the top of the window. You can use this tab to adjust the way the codes are displayed, for example, to enlarge the caption and make it bold.

Undoing changes

Recent actions can be undone step-by-step by clicking the Undo Changes symbol in the top right corner of the user interface.

Displaying the code frequency and coded segments of a code

In order to organize codes, it can be helpful to visualize the amount of associated coded segments. By clicking the Code Frequencies symbol on the Start menu tab, the code frequency will be automatically displayed in brackets after the code name.

When you right-click on a code, a context menu will appear from which you can access the following options:

  • Memo – Opens the associated code memo.
  • Overview of Coded Segments – Opens a tabular overview, in which you can inspect the coded segments of the code.
  • Overview of Linked Memos – Opens a tabular overview in which you can browse all memos of the selected code.

Saving the current state of the process as a MAXMap

Working on the code structure with Creative Coding may take some time and may include different stages of development. While you start with arranging codes in groups first, you possibly are merging codes and creating new higher-level codes later on. To track these different stages, MAXQDA allows you to save the current status of your work as a regular MAXMap: just click on Save as a Map in MAXMaps icon on the Start menu tab. The map will be available after quitting Creative Coding when you start Visual Tools > MAXMaps from the main menu.
