Display Frequencies as Charts

Frequency tables can be displayed as column, bar, or pie charts. You can switch between chart and table views using the  and  icons.

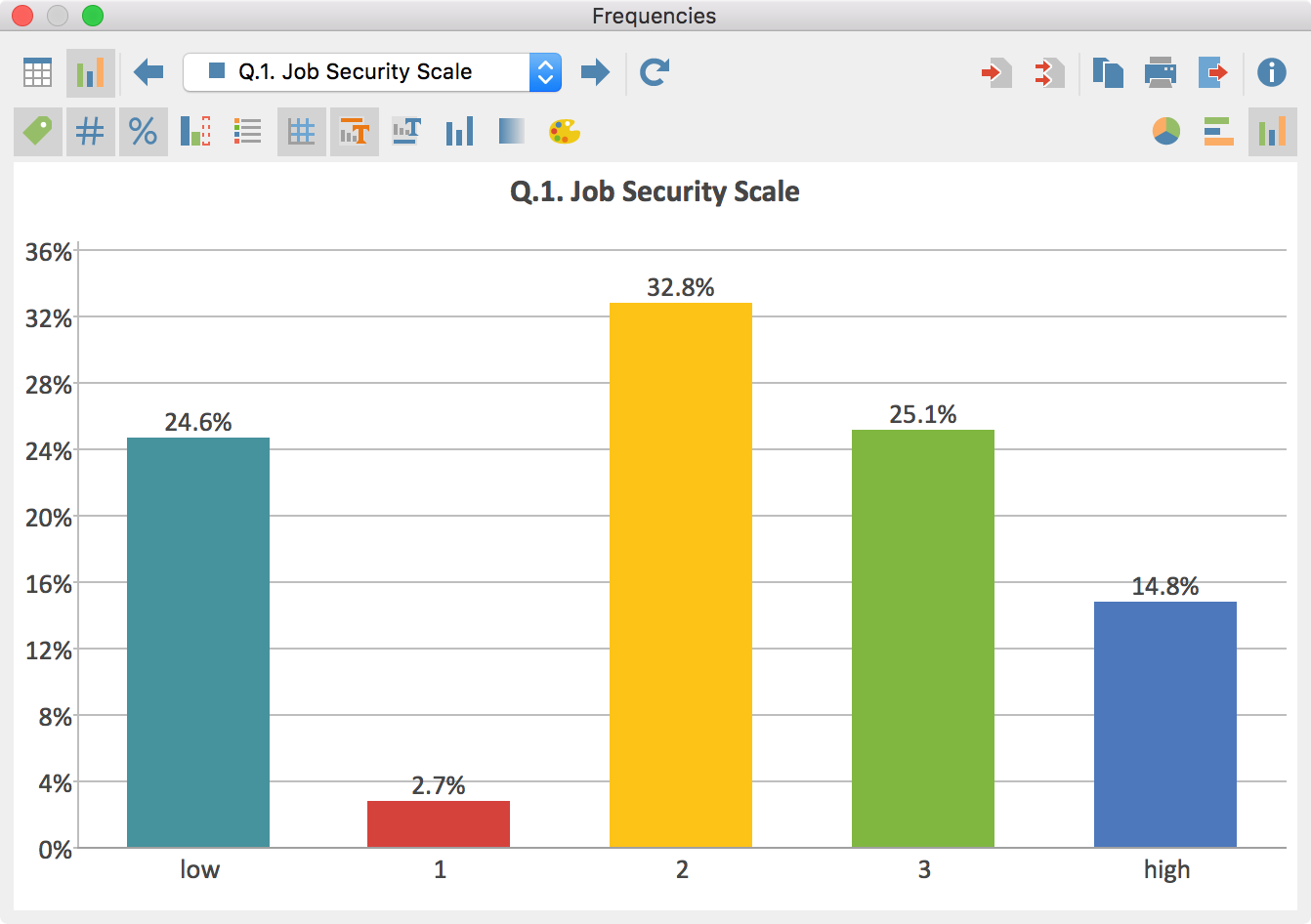

Frequency chart

You can customize the chart design and display by using the icons in the toolbar above the chart, as well as double-clicking and right-clicking on the elements of the chart. The size of the chart automatically adjusts to the window size. Enlarge the window to get a larger chart.

Hint: At maximum, the first 20 entries of the frequency table will be displayed in the chart.

Frequency charts can be transferred to the Output Viewer for later export. In order to do so, use the following icons.

  Insert chart into output viewer, to insert only the current display

  Insert all charts into output viewer, to insert charts for all created frequency tables at the same time.

Hint: Charts will be inserted into the Output Viewer in the size that they are displayed, to a maximum width of 650 pixels.

To export or print a chart directly, you can use the usual icons in the top right of the window:

  Copy to clipboard,   Print and   Export.
