How to Analyze Videos with MAXQDA: Easy 5 Step Guide – Christmas Edition!

Christmas is just around the corner and we are embracing the holiday spirit. To spread some Christmas cheer, this year’s final tip of the month is about how to analyze videos quickly and easily with the help of MAXQDA 2018.1 and – as you may have already guessed – we will be analyzing a Christmas classic, Rudolph The Red-Nosed Reindeer!

MAXQDA 2018.1 has several unique tools for the analysis process itself, as well as for when it’s time to publish your findings. Let’s go through them while analyzing the 1948 Rudolph movie (which is, by now, in the public domain) – the heartwarming story of a young reindeer that everyone makes fun of just because he is a little different from the other reindeer. As the moral of the story reveals, there is nothing wrong with being different, because sometimes our uniqueness can be the exact thing that might save Christmas.

Of course, you can use the tools and tips shown in this article for your more serious and advanced video analysis needs. If you don’t already have a MAXQDA license, download the 14-day free trial to get started:

Download Free Trial

Step 1: Import the Video

Whether your video file is an MP4, MOV, MPG, M4V, 3GP, 3GGP, or WMV on Windows – you can import all of these video files into MAXQDA exactly the same way you would a text document. Open your MAXQDA project and click the Import tab as you normally would and select ‘Documents’. You can also simply drag and drop your video in the “Document System” window.

Please note: To avoid the creation of extremely large project files, video and audio files are stored in the MAXQDA externals folder on your computer, not in the project itself. For more information about importing video files, MAXQDA externals folders, and how to reduce the video file size, check out our free Online Manual.

Tip: We recommend using HD resolution (720p) or Full HD resolution (1080p) instead of higher resolutions to avoid long loading times.

The Multimedia Browser

MAXQDA’s central element for playing and analyzing videos is the Multimedia Browser. There are at least two ways to play your video in the Multimedia Browser:

  1. You can use the context menu (‘Open video file’) for your video file document in the “Document System” window.
  2. You can open the video file document in the “Document Browser” window and click on the video camera icon in the “Document Browser” toolbar.

Step 2: Transcribe the Dialogue

Alongside coding the video, the Multimedia Browser is also the perfect tool to help you transcribe video files. Transcribing videos is especially helpful for researchers using data gathering methods, such as interviews and observation. For our example project, we have created a transcript of the spoken word in Rudolph The Red-Nosed Reindeer to be able to analyze the dialogue in the scenes in more detail at a later stage.

To begin transcribing, right-click on a point in the waveform from which you want to start the transcription and select ‘Transcribe’ in the context menu. You can now use timestamps to link your transcript to the video, making it easier to find the specific segments later. For more tips and tricks around transcribing video and audio data with MAXQDA 2018, check out our how-to blog article on transcription.

Create Video Images

Another useful function of MAXQDA’s Multimedia Browser is the creation of video images. While transcribing, you can create and save specific images as individual ‘documents’ in the “Document System” window so that you can investigate them further later. Simply click the camera icon on the right side of the control panel to copy a video image to your clipboard. You can then code the image on its own or save it for later to insert into a presentation or Word document report. In our example project, we chose to code a video image to further investigate Christmas tree decorations from the 1940s:

Step 3: Code the Data

If you are unfamiliar with coding in Qualitative Data Analysis, or you would like a refresher, check out this 5-minute tutorial. Let’s take a look at our example project. We created codes for the various phases of the storyline in order to both investigate what happens in each stage of the video and then to be able to compare the phases later in the research project.

Through this process, we were able to identify the 5 stages of the story according to Freytag’s dramatic arc, which we have coded as “introduction”, “rising action”, “climax”, “falling action”, and “happy end” (see the “Code System” window screenshot below). In addition, we created codes for the characters, the arising conflicts, Rudolph’s emotions, and the Christmas items shown throughout the film.

There are two ways to create codes: You can either…

…create codes, as you would normally do it, in the Code System window or…

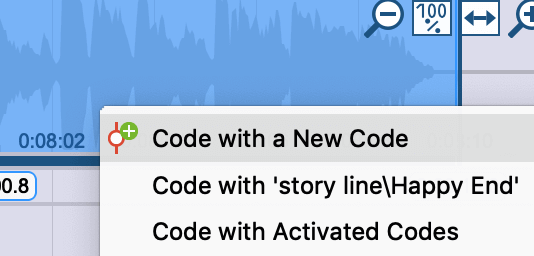

…mark a certain video sequence in the multimedia browser, right-click and select ‘Code with a New Code’

Coding Steps

After creating the codes, it is now time to code the content of the video. Simply play the video to review the data, next:

  1. Use F4 and F5 on your keyboard to start and pause your video when you find a piece of information that fits the codes you created earlier (or create new codes directly from the data if you are using a methodological framework that calls for in-vivo coding, such as Grounded Theory).
  2. Mark the segment of the waveform that you want to code by clicking where you want to start, pressing down your left mouse button, and dragging it across to the time when the scene/video segment you wish to code ends (like highlighting in Word).
  3. Drag the code you want to assign to the video segment with from the “Code System” window onto the highlighted segment.
  4. A code will appear under the time segment you have chosen (see the screenshot below) and you will be able to instantly find this piece of the video during the next stage of your analysis in MAXQDA’s “Retrieved Segments” window, just like any other coded information in your project.
  5. If you would like to adjust the boundaries of your coded video segment, use the zoom function to enlarge the waveform and move the boundaries of your coded segment with your mouse more precisely. You can also use the right and left arrow keys to jump by one-tenth of a second if you would like to be very exact.
Coding video images with MAXQDA

If you want to code your video from more than one perspective or refine your coding categories throughout your analysis process, we recommend coding in several rounds. By going back and coding the same data (in this case, a video), you can concentrate on one aspect at a time in each round and thereby reduce errors, such as missing an important data segment. You may also find that the more times you review your data, the more nuanced your “code tree” will become and the more new ideas will arise regarding the results you have drawn from your data.

Tip: Memos are a great place to store any ideas that come to mind while coding. To attach a memo to the video, right-click in the waveform segment you are working with and select ‘New Memo’. You can easily move your memo around by dragging it wherever you need later.

Retrieve Coded Video Segments

During your analysis, you may find it necessary to check the content of coded video segments for a particular code. The “Retrieved Segments” window facilitates and accelerates exactly this step. It shows you all of the coded segments that were coded with any of the activated codes in any of the activated documents.

Simply, click on your video document in the “Document Browser” window and activate the codes that you want to revise. In our example, we activated the code “Rudolph’s emotion”. All video segments coded with “Rudolph’s emotion” are automatically displayed in the “Retrieved Segments” window (see screenshot below). They are also automatically linked to the original material, which makes rewatching the context of the coded video segment extremely easy.

When working with videos, the first image of the video clip is displayed as a preview. For audio clips, a (standardized) image of a waveform is displayed. By simply clicking on the source information box, the Multimedia Browser plays the coded video segment. You can now rewatch and compare the coded video segments, e.g. Rudolph’s facial expressions, gestures, and pitch to refine your coding system (creating and assigning new, more specialized codes, etc.). For example, you can break down the category “Rudolph’s emotion” in more detailed subcategories, such as “sad”, “excited”, “ashamed” and so on. You can recode your data directly from the “Retrieved Segments” window, by either drag & drop the selected segment onto a code in your Code System or by creating a new code using the corresponding button in the Retrieved Segments window’s toolbar.

Step 4: Visualize the Analysis

Once you have finished coding your video, MAXQDA offers you a wide range of options to further analyze and present your research data. Review and compile your coded segments in the “Retrieved Segments” window, visualize your data analysis, present frequencies, and much more – it’s up to you!

Codeline

MAXQDA’s Codeline feature is especially useful for getting an overview of the coding work you did in the last step. The Codeline is a visual tool that gives you a sequential view of your coded segments. You can identify the occurrence of codes throughout the video and what codes overlap and where. This is a great starting point for identifying interesting co-occurrences that are worth further investigation.

Document Portrait

The Document Portrait feature helps you visualize all the video segments assigned to specific codes according to their order in the video. You can sort the coded segments by color frequency, which allows you to visualize and compare the total time of the (sub-)codes. For example, we have used the Document Portrait to analyze the total time each character in the movie appears, and we can clearly see that Rudolph and Santa have the most screen time. Please note: The Document Portrait only makes sense if you have assigned different colors to each of the codes you are analyzing.

Subcode Statistics

Create frequency tables and charts for subcode frequencies to compare subcodes. Choose from different chart types, color schemes and other display options to customize the chart to your needs. This is a great tool for mixed methods researchers! The following chart is an example of a subcode statistic where we have visualized the occurrence of Christmas items throughout the movie and we can see that Christmas trees and presents are the most frequent Christmas items in the movie.

Code Cloud

Another, even more visual, way to explore, present, and publish the most frequently assigned codes is the Code Cloud. MAXQDA 2018.1 has even more options available to design the code cloud for your needs. For example, you can arrange your codes in any shape you want – just upload any image you want (the image is converted into a black and white image, hence black and white images are best)! You can even make a Christmas-tree-themed Code Cloud like we did and export the image directly into your presentation.

MAXMaps

Finally, when it comes time to theorize about your analysis work, you can use MAXMaps, MAXQDA’s tool for creating concept maps to graphically present connections in your data. You can import almost anything into your map: codes, memo texts, coded image segments, and so forth. One huge advantage of MAXMaps is that all the elements used in your map are interactive, meaning they are connected to the MAXQDA project. Simply double-click on the icon and MAXQDA opens whatever is behind it. In addition, MAXMaps offers many ways to customize your map that are worth checking out. For example, you can change the icon to any image you want, as shown here with the characters from Rudolph:

Step 5: Export the Results

MAXQDA supports your research all the way from gathering data to exporting your results. Whether you are looking for an Excel table, an image, or html code, simply click the corresponding export icon to save your work on the computer outside your MAXQDA project. Another way to include MAXQDA’s visualizations or graphs is to copy the current window to the clipboard and insert it directly into your Word document – this is a really easy way to enrich your research report with eye-catching visualizations. The export options can always be found in the upper right corner of the tool window.

But wait, there’s more! When it comes to video analysis specifically, MAXQDA allows you to export short extracts of your video material for presentations or analysis. These clips are stored as distinct video files and can be inserted as new video files into your MAXQDA browser. All you need to do is mark the video segment that you want to import and select ‘Export Video Clip’ from the context menu. A dialog will pop up in which you can define your output preferences. If you want to export all the coded video segments of one or more codes, use the corresponding function in the upper right corner of the Multimedia Browser.

Who else than Rudolph himself could find better words for closing this article?

We hope that this week’s Christmas tip helped you learn more about video analysis and maybe even kindled some Christmas spirit in you. We wish you and your loved ones a wonderful holiday season – and if you still need a present for your research team, a MAXQDA license is always a much-appreciated present!
