Crosstabs

In order to create a new crosstab select Compare Groups > Crosstabs in the main menu of MAXQDA Stats. A window appears that allows you to determine rows and columns for the crosstab.

Dialog box for selection of rows and columns in the crosstab

Variables can be selected in several ways:

  • Double-click on a variable.
  • Drag and drop the variable into the right window pane.
  • Select one or multiple variables with the mouse by holding the Ctrl/Cmd key then drag the selection into the right window pane with the mouse, or click the blue arrow in the middle of the window.

To integrate code frequencies per document in the crosstab, switch to the “Codes” tab and select the desired codes. (This option is available only if MAXQDA Stats was launched with the data of a MAXQDA project).

Results table

After starting the calculation by clicking OK a crosstab will be computed for each combination of rows and columns variables. The figure above shows a selection for which four crosstabs will be created. A results table then appears that allows you to switch between the single crosstabs by using the blue arrows and the drop down menu at the top of the window.

Results table for the function “crosstabs”

The number of valid and missing values for the displayed variable combination is shown in the upper right corner.

Selecting displayed values

If you start the function “crosstabs” the numbers in the cells display the absolute frequencies, thus the number of cases for each combination of variable values. You can switch the display for the cells to the following values:

  • Relative frequencies – percentage based on all valid values
  • Row percentage – percentage based on the sum of a row
  • Column percentages – percentage based on the sum of a column
  • Expected frequencies – expected frequencies in case of independence of both variables
  • Residuals – differences between observed absolute frequencies and the expected. In case of positive residuals more cases occurred than would be expected considering the marginal distributions.

Standardized residuals – in order to gain a better comparability the residuals are divided by the root of the expected frequencies. The standardized residuals’ magnitude corresponds to the root of the particular cell’s Chi-square.

Corrected standardized residuals – the standardized residuals are adjusted on the basis of the marginal frequencies.

The cells of the crosstab display either one or two of the presented values. Use the drop down menu on the top of the chart to select the values you want to display.

Setting the content for the cells

Highlighting cells with high standardized residuals

You can use standardized residuals for the exploratory interpretation of the table. This is possible because based on the assumption of the independency of the two tabulated variables the standardized residuals are asymptotically normally distributed. Accordingly, a standardized residual greater than 2 or less than -2 indicates an unexpected high or low number of observations in the cell. Values that exceed the magnitude of 2.6 are even less expected.

Click on the icon Highlight cells with high standardized residuals . Now MAXQDA Stats highlights all cells with a standardized residual greater than 2 in blue and all cells with values smaller than 2 in red. If there are values whose magnitude is greater than 2.6 the cells are additionally displayed in a darker colour.

Crosstab with highlighted cells for easier interpretations

Overview of toolbar functions

In the upper section of the results window two toolbars are located, which contain the following important functions:

Previous/Next – using the blue arrow or the selection list, switch between the created crosstabs table.

Refresh – Recalls the dialog window for creation of crosstabs.

Insert into output viewer – inserts the currently displayed table in the Output Viewer.

Insert all into output viewer – inserts all created tables in the Output Viewer.

Copy to clipboard – copies the current table or the highlighted area in the table in the clipboard, for example for insertion into Word.

Print – prints the currently displayed table.

Export – exports the currently displayed table in Excel format, website (HTML) format or RTF format for Word and other word processing programs; exports the currently displayed chart in PNG, SVG or EMF (only Windows) format.

Show value labels – this option is selected by default and causes the defined value label of a variable to be displayed in the place of the value of the variable.

Highlight cells with high standardized residuals – switch on this option to highlight cells, whose magnitudes of standardized residuals are greater than 2 for easy interpretation of the results.

Association measures – opens a window with association measures for the two variables displayed in the actual crosstab.

Undo changes – step-by-step resetting of changes to a table (deletion of rows, merging and moving of rows).

Redo – step-by-step restoring of changes to a table.

Sort tables and customize columns

Tables can be sorted by clicking a column header, in ascending order with the first click and descending order with the second. Clicking again will restore the original order.

Tip: You can also move the rows of the results table. Click a row, then drag and drop with the mouse to the desired location. This function is also available for multiple highlighted rows. Lines containing totals or missing values cannot be moved.

Column widths can be adjusted with the mouse, and their positions can be changed by clicking the column header then dragging them to the desired location with the mouse.

Delete rows or columns

The results table is interactive and one or more rows can be removed, for example to restrict the evaluation to selected variables. Right-click a row and select Delete. You can also select multiple rows to delete by holding down the Ctrl/cmd key.

Delete a row from the results table using the context menu

To delete a column from the results table, right click on its heading and select Delete.

The table will be automatically updated after deletion of rows or columns.

Merge values

The interactive results table also allows you to merge multiple values:

  1. Highlight at least two rows by holding down the Ctrl/cmd key as you click on the desired rows with the mouse.
  2. Right-click the selection and select Merge values.

In the following example, the two values “married” and “partner” are merged:

Merge multiple values using the context menu

Columns can be merged, too:

  1. Right-click on a column heading and select Merge values.
  2. A popup menu appears containing all other columns of the crosstab. Click on one of the displayed columns to merge it with the right-clicked column.

The table will be automatically updated after merging columns or rows.

Save documents as document sets

If MAXQDA Stats is launched with the data from a MAXQDA project, the frequency in a cell corresponds to a compilation of documents in which the combination of variable values occurs. This compilation of documents can be saved as a document set in MAXQDA: Right-click on a row and select Save as document set.

Store documents that are attached to a combination of variable values as a document set in MAXQDA

Initially, MAXQDA stores such sets in the background. When you exit Stats, all document sets created during the analysis will be displayed, so you can select which document sets you wish to transfer to the MAXQDA project.

Select document sets upon exiting MAXQDA Stats
Tip: The number of saved document sets in MAXQDA Stats is always displayed in Stats staus bar. Simply click on the information in the stauts bar to open a new window, in which you can view or delete the saved document sets.

Calculating measures of association for crosstabs

In order to calculate measures of association and Chi-square values for a crosstab, click the icon Association measures  in the toolbar above the crosstab.

Icon for calling up a window with measures of association of a crosstab
Measures of association for a crosstab

The following measures are computed (see textbooks on statistics for interpretation):

  • Pearson’s Chi-square with degrees of freedom for the crosstab and the asymptotic two-sided significance level.
  • Number of cells with expected frequencies smaller than 5 as well as the minimum expected frequency.
  • Coefficient of contingency
  • Cramer’s V
  • As you can see in the example above, additional measures are calculated in fourfold tables:
  • Pearson’s Chi-square with continuity correction
  • Phi

If you click Copy the table will be transferred to the clipboard so you can paste the table easily into other programs such as Word.

Transfer results table to the Output Viewer

After the tables have been created and adapted according to your needs, they can be transferred to the Output Viewer from which they can later be exported together:

  • Click the Insert into output viewer  icon to transfer the currently displayed results table to the Output Viewer.
  • Click the Insert all result tables into output viewer icon to transfer all created tables to the Output Viewer at once.

MAXQDA Stats will ask if you also wish to include the measures of association. If you agree, a table containing the measures will be displayed below the results table.

Tip: When the table is transferred, the adjusted column widths will be maintained.
Crosstab following transfer to the Output Viewer

Export and print results table

Several options for exporting and printing the currently displayed results table are available using the following symbols:

Copy to clipboard – copies the entire table or selection to the clipboard, for example in order to paste it directly into Word.

Print – starts the print process and displays a print preview, in which the settings such as margins, orientation, headers and footers can be applied.

Export – exports the table in Excel format, website (HTML) format or RTF format for Word and other word processing programs.

Display results as a grouped vertical or horizontal bar chart

You can display the contents of the crosstab as a grouped vertical or horizontal bar chart. Via the and icons you can switch between the chart view and the table view.

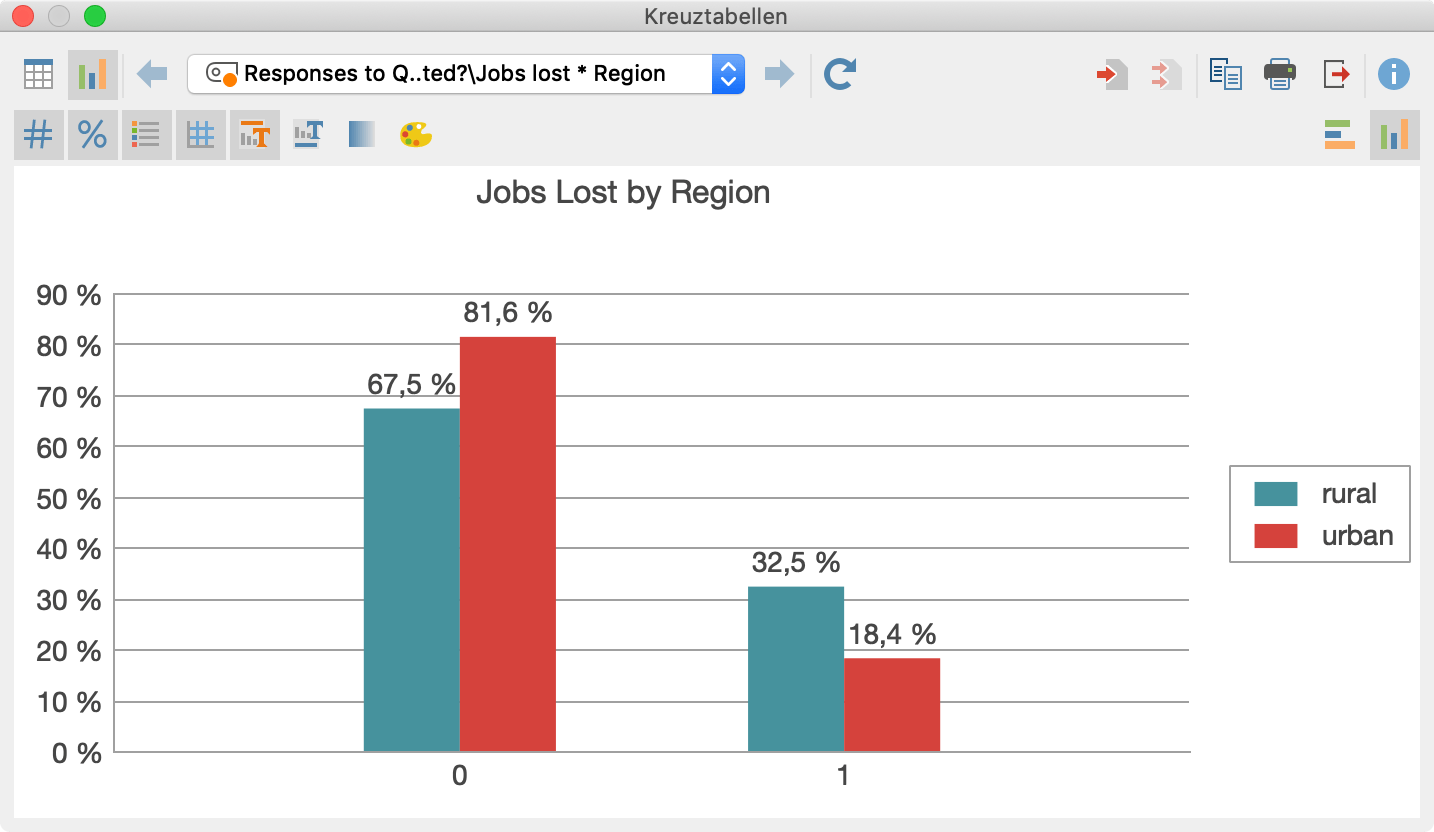

Grouped vertical bar chart

You can change the display from a vertical bar chart to a horizontal bar chart by clicking on the corresponding icons in the upper right-hand corner of the toolbar.

Via the icons on the left side above the diagram, you can show or hide the data labels, titles and subtitles, as well as specify the color.

The size of the chart automatically adjusts to the window size. Maxmize the window to display a larger chart.

Exporting charts

The generated charts can be transferred to the output viewer and stored for later export. To do this, click on the icons.

Insert chart into output viewer to transfer only the current view or

Insert all charts into the output viewer to insert the charts for all generated mean value comparisons at once.

Insert all charts into the output viewer to insert the charts of all analyzed variables and codes at once.

Please note: The chart is inserted into the output viewer as it is displayed, but not wider than 650 pixels.

To export or print a chart directly, the usual icons are available in the upper right-hand corner of the window:

Copy to clipboard, Print and Export.
